TIG9

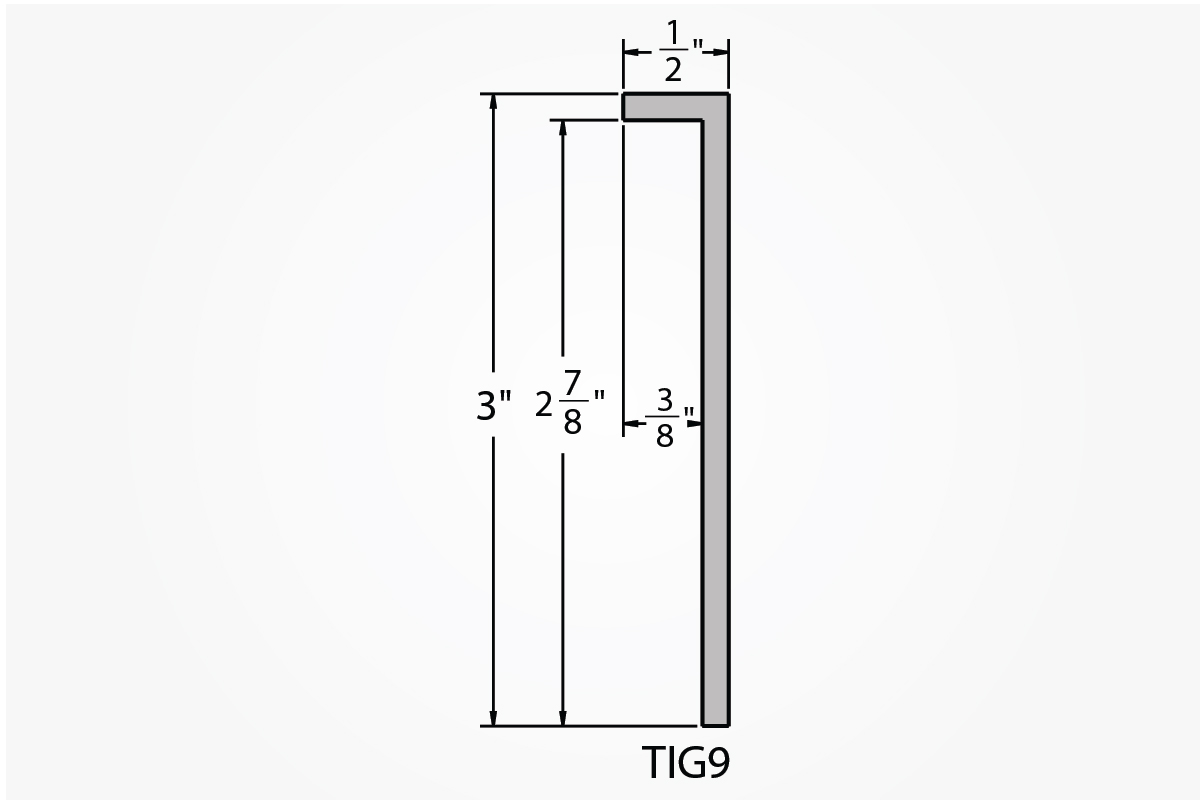

Welded Aluminum Picture Frame TIG9 Profile Drawing

TIG9

contemporary presentation for flat and dimensional art

Our finished corner picture frames are made to your size requirements and include a 1/16” allowance. You may choose from our ten standard profiles or send us your ideas. We can trim our standard profiles, or order specialized materials for your project.  There are maximum sizes for some of our frame profiles, but we are well known for making very large picture frames. Just ask.

  • Maximum Short Dimension: 60″
    Maximum Long Dimension: 90″
  • Minimum Short Dimension: 7″
    Minimum Long Dimension: 7″
  • Standard includes a 1/16” allowance
  • Each frame comes with a 3/4” poplar strainer or ask about a 1/2” strainer
  • Pre-drilled holes and #4 x 3/4” matching screws included
  • Standard hole placement is 1/2” from the back edge of the frame. You may specify non-standard allowances and hole placements as needed.

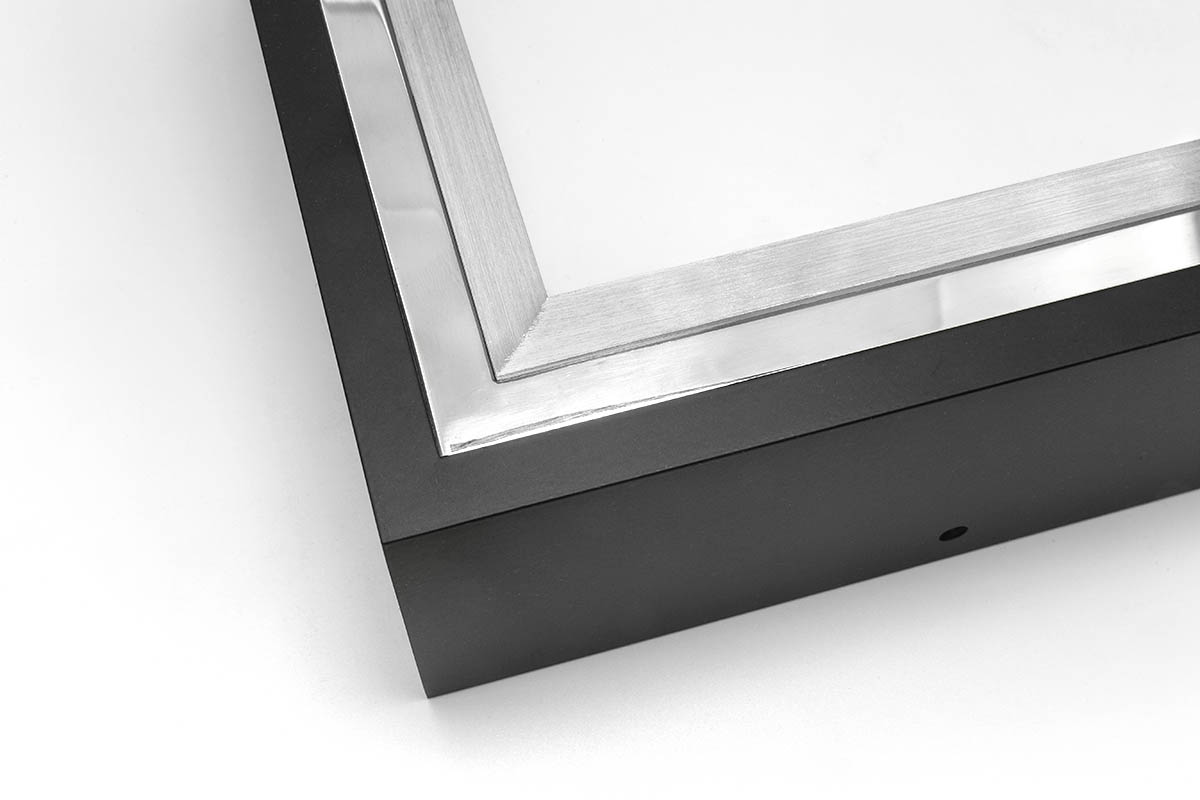

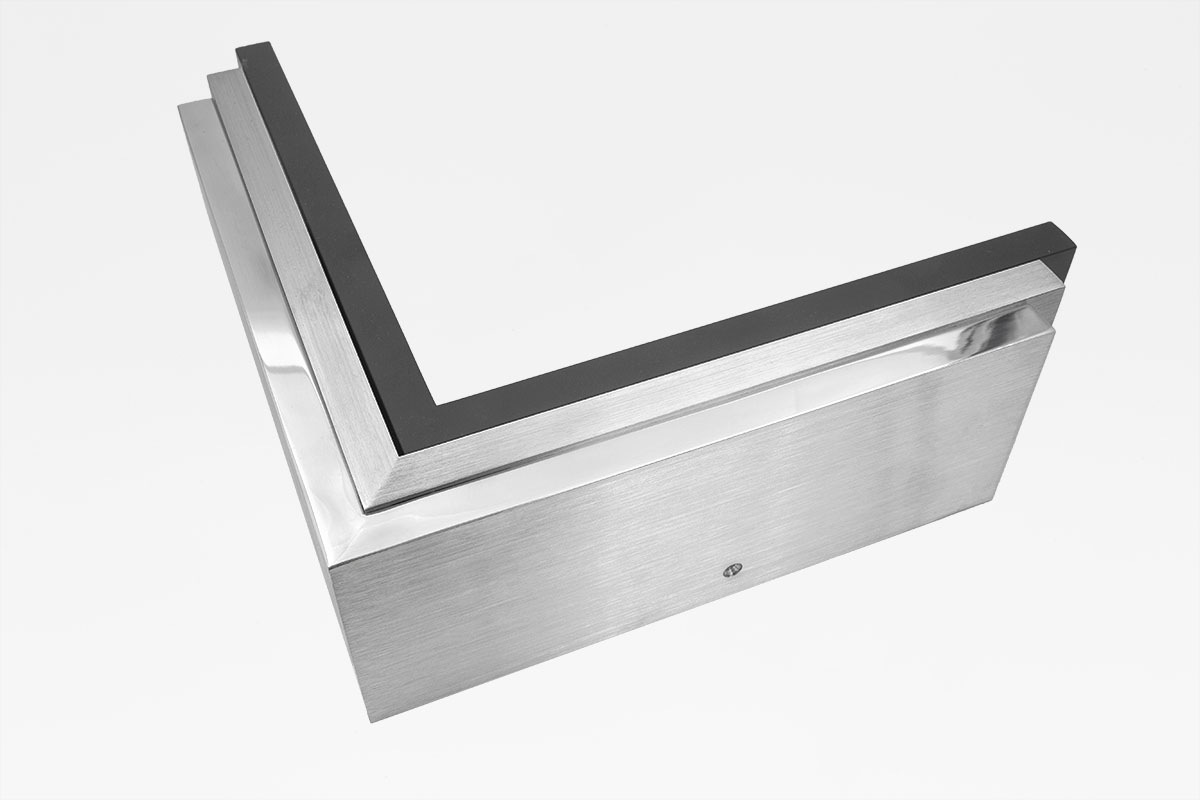

The classic finish has brushed (grained) sides with a mirror-polished face.

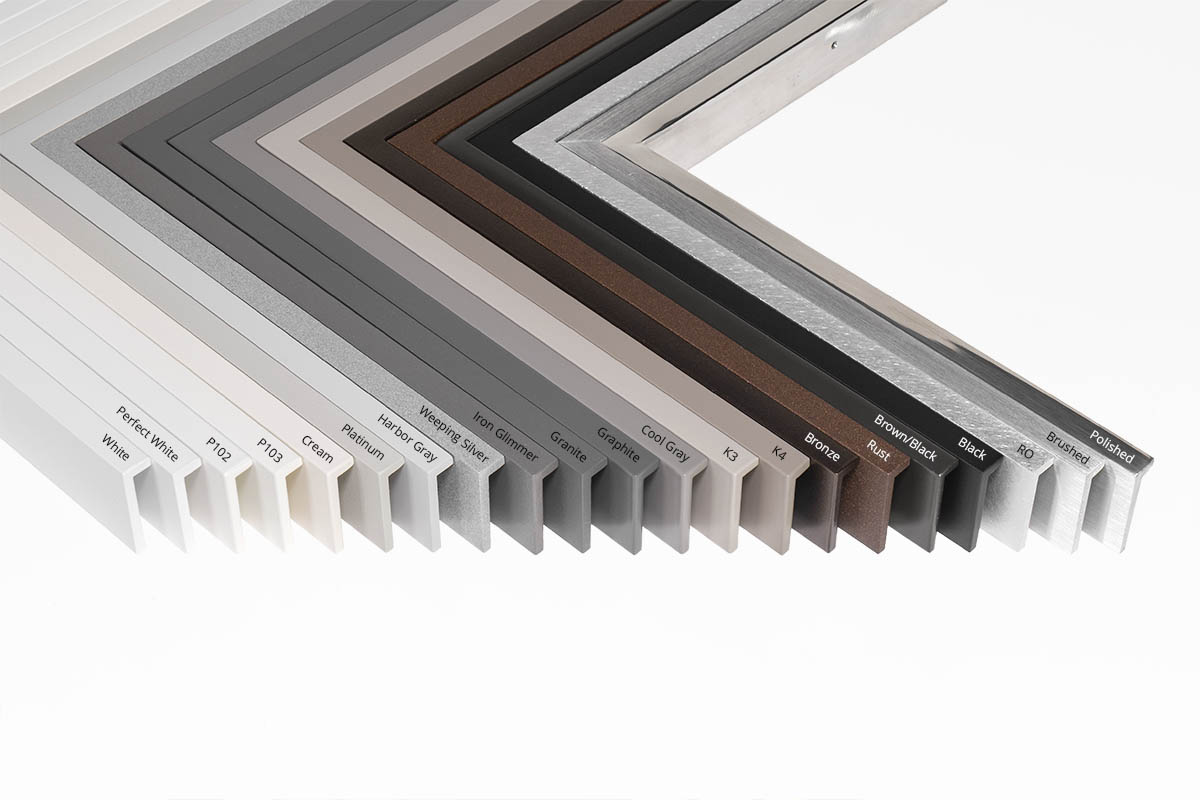

We also offer brushed sides and face, a random orbital (RO) finish, and 18 different powdercoat colors. Scroll down to see powdercoat chip chart or to request one.

Do you know the dimension you need?

Our frames are ordered by inside dimension (ID) – basically, the size of the art. We automatically give the frame a 1/16” allowance, unless you request otherwise.

Have you considered screw hole placement?

Standard hole placement is 1/2” from the back edge of the frame to match our standard 3/4” x 1-3/8” poplar strainers. If you request a 1/2” x 1-1/4” strainer, the holes will be 1/4” from the back edge. Custom hole placement is available upon request

Do you know what our ordering policies are?

Please review our ordering policies before placing your order.
